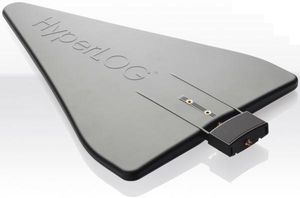

Aaronia | HyperLOG 3080 X

Active log-per antenna, 380MHz-8GHz

Aaronia
Reference : AARHyperLOG3080X
Serie : Spectran, HyperLOG 30xxx X
Purchase Order Reference : HyperLOG 3080 X
Brand : Aaronia
Antenne de mesure CEM logarithmique périodique active.
Avec préamplificateur.
Bande de fréquence: 380MHz à 8GHz.
Impédance nominale: 50 Ohm.
Gain.: 45dBi.
ROS: < 1:2.
Connexion HF: prise SMA (f) ou N via adaptateur.
Dimensions (L/L/H): 590x360x30mm.
Poids: 1400 g.
En option: laser de visée (rouge 1mW ou vert 150mW), compas-boussole, boitier étanche à la pluie.
TTCHT
Quantity
Expédié sous 2 semaines
Quick quote for this product
Quick quote for this product
Details

HyperLOG 3080 X



Log Periodic Antenna spans 380MHz to 8GHz with preamplfier



Ultra high gain ACTIVE directional antenna. Wide frequency range from 380MHz to 8GHz. Optional laser. compass etc.. Detects lowest RF sources!

Every HyperLOG antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality GOLD COATING. a high-tech antenna-case (radome) which offers protection against mechanical damage and environmental influence. a top-quality integrated tripod connection and an SMA connector (18GHz version) with twist protection.

Made in Germany:

All Aaronia LPDA antennas are developed. individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 year warranty for all EMC antennas.

Exhaustive Calibration data:

All Aaronia LPD Antennas include a complete high resolution (10MHz steps!) calibration data set with all calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Measurement Receiver or Spectrum Analyzer.

Included in delivery:

Each HyperLOG antenna will be shipped with many accessories in a high-value aluminum carrying case. More details can be found at above section "Included in delivery".



Options:

All HyperLOG X antennas can be equipped with various options which highly expand the functionality. More details about possible options for this HyperLOG are available at above section "Options".

  • Compatible with any Spectrum Analyzer brand
  • Frequency range: 380MHz to 8GHz
  • Nominal impedance: 50 Ohm
  • VSWR: <1:2
  • Gain: 45dBi (typ.)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Calibration points: 763 (10MHz-steps)
  • Dimensions (L/W/D): 590x360x30 mm
  • Weight: 1400gr
  • Warranty: 10 years

Highlights:

  • Ultra high gain for detecting even lowest RF sources
  • Integrated Low Noise Preamplifier incl. LiPo battery
  • Runs with battery or external power supply (included)
  • Integrated calibration data on EEprom (readout via USB)
  • Additional standard calibration data (on CD)
  • Special designed radome for perfect antenna protection
  • Gold coating for stable performance
  • Wide bandwidth
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact and sturdy design
  • Can be used in the lab and for open-field application



Examples for possible analysis and measurements within frequency range (380MHz - 8GHz):

  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • 5GHz WLAN
  • etc.



Included in delivery:

  • HyperLOG 3080 X active directional EMC measurement antenna
  • Low Noise Preamplifier with integrated LiPo battery (3.5h run time)
  • International battery charger and power supply
  • Calibration data on EEprom (readout via USB)
  • Typical calibration data with 763 calibration points (10MHz steps!) on CD
  • Large aluminum carrying case with foam protection
  • Pistol grip with mini tripod function
  • Aaronia SMA tool set with over-torque protection
Product Details
41-Standard Manufacturer Warranty 10 YEARS
699-Antenna type Log-periodic
700-Active or passive antenna ? Active (preamplifier)
701-Directional ? Yes
240-Frequency (min) 380 MHz
235-Frequency (max) 8 GHz
613-RF Connector SMA
36-Additional Characteristics Active antenna with preamplifier, 45dBi gain
132-Package includes Preamplifier with battery, AC charger, calibration datas on CD, pistol handle-tripod, SMA tool set, carrying hardcase
35-Dimension (HxWxD) (mm) 590x360x30 mm
13-Net Weight 1400 g
