Beha-Amprobe | TMD-53

2 channels thermometer, thermocouple type K & J

Beha-Amprobe
Reference : AMPTMD53
Serie : TMD50, TMD5x, TMD-50
Purchase Order Reference : TMD-53
Brand : Beha-Amprobe
Thermomètre numérique à deux entrées.
Deux entrées de sonde de température: type K & type J.
Mesure des valeurs MIN/MAX et relatives.
Unités: °C, °F.
Gamme de mesure: K: -200 à +1372 °C; J: -210 à +1200°C. (Dépend de la sonde utilisée).
Précision: +- (0,05 % + 0.3 °C).
Résolution: 0.1 °C.
TTCHT
Quantity
En Stock
Quick quote for this product
Quick quote for this product
Details

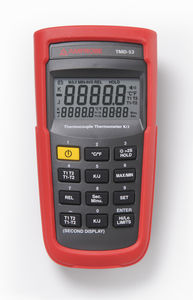

Amprobe TMD-53

2 channels Thermocouple Thermometer K/J-type


The Amprobe TMD-53 thermometer is a perfect choice for HVAC/R technicians and electricians. as well as research. industrial process. and quality control applications. The dual inputs allow easy super-heat and sub-cool temperature measurement as well as cut-out and in temperature measurements.



  • K/J-type thermocouple selection
  • Dual input
  • MAX/MIN with elapsed time. AVG. REL. HOLD functions
  • TIME setting. REL setting
  • Warning beeper with Hi/Lo setting
  • Resolution 0.1°C to 0.2°F
  • User selectable °C/°F
  • Included Accessories: Users Manual. K type thermocouple (2) Batteries (4)




FEATURETMD-50TMD-51TMD-52TMD-53TMD-53WTMD-55TMD-56TMD-55W
Thermocouple typeKK. JK. J. T. EK. JK. JK. J. T. E. R. S. N
Basic accuracy0.1 %0.1 %0.05 %0.05 %0.05 %0.05 %0.05 %0.05 %
Number of parameters on the display11333333
Real time clock - wireless beeper with setting
Wireless transmission
Data capture125 Samples128 Samples256 Samples128 Samples
Data logger1024 Points16000 Points1024 Points
PC interfaceWirelessUSBWireless
Thermocouple TypeTemperature Range
K-TYPE-328 °F → 2501 °F (-200 °C → 1372 °C)
J-TYPE-346 °F → 2192 °F (-210 °C → 1200 °C)
T-TYPE-328 °F → 752 °F (-200 °C → 400 °C)
E-TYPE-346 °F → 1832 °F (-210 °C → 1000 °C)
R-TYPE32 °F → 3212 °F (0 °C → 1767 °C)
S-TYPE32 °F → 3212 °F (0 °C → 1767 °C)
N-TYPE-58 °F → 2372 °F (-50 °C → 1300 °C)



Product Details
41-Standard Manufacturer Warranty 1 YEAR
173-ATEX No
686-Number of channels 2 channels
160-Temperature accuracy +- 0.05% + 0.3°C
109-Sensor (Type) Thermocouple
110-Min measure range (°C) -200 °C
111-Max measure range (°C) 1372 °C (depends of the probe is used)
116-Measuring unit (°C/°F) °C | °F
112-Resolution (°C) 0.1°C
114-Functions (Type) Sonorous alarm | Max value | Min value | Average | Hold | Differential
36-Additional Characteristics
  • Différence T1-T2.
  • Thermocouple K & J.
  • Alarme sonore haute/basse
132-Package includes 2x wired type K probes, 4x 1.5V batteries, user manual
35-Dimension (HxWxD) (mm) 160x85x30 mm
13-Net Weight 280 g
