Chauvin-Arnoux | CA6503

Analog insulation tester 1MOhm to 5000MOhm, 250/500/1000V

Reference : CARCA6503
Serie : imeg1000n, CA650x
Purchase Order Reference : P01132504
Brand : Chauvin-Arnoux
Isolement: jusqu'à 5GOhm (4 cal.)
Tensions de test: 250, 500 et 1000 V DC
Gamme de mesure 1 à 5000 MOhm
Mesure de continuité
Totale autonomie: alimentation par magnéto.
Expédié sous 2 semaines
Quick quote for this product
Quick quote for this product

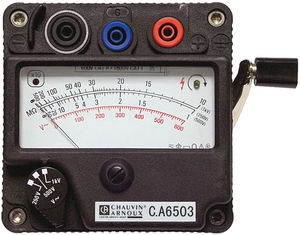

Hand-cranked portable insulation tester

Portable. lightweight and compact. the C.A 6503 insulation tester can be used totally independently because it is powered by a magneto.

This all-terrain tool is ideal for use on industrial and residential sites. electricity distribution networks and telecommunications equipment. It is suitable for a wide range of applications such as ensuring that electrical installations comply with the applicable standards. or carrying out preventive maintenance on cables. motors. circuit-breakers. transformers. etc.


  • Test voltages: 250. 500 and 1.000 V DC
  • Measurement range: 1 to 5.000 MΩ
  • Power supply: magneto
  • Protection: IP52
  • Electrical safety: IEC 61010 300V CAT III
  • Dimensions : 120 x 120 x 130 mm / 1.06 kg

Product Details
41-Standard Manufacturer Warranty 1 YEAR
761-Type Analog
91-Leads compensation (Y/N) No
83-Current inversion (Y/N) No
94-Test voltage (V) 250 V | 500 V | 1000 V
81-Insulation min (Ohm) 1 MOhm
82-Insulation max (Ohm) 5000 MOhm
80-Voltage measure max (V) 600V
25-Autonomy "infinite" (powered by magneto)
119-Safety Level CAT III
120-Safety Overvoltage CAT III 300V
88-Display Analog
132-Package includes CA6503, test leads, softcase, user manual
35-Dimension (HxWxD) (mm) 120x120x130 mm
13-Net Weight 1.06 kg
