Dent Instruments | RoCoil A4 CT 16"

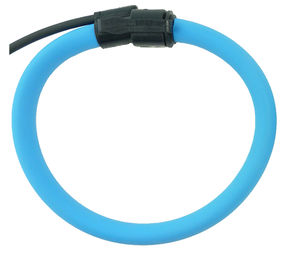

Flexible CT RoCoil (Rogowski) 5000A, 13cm opening

Dent Instruments
Reference : DTICTR16A4U
Serie : DENTinst, ELITEpro, PowerScout, RoCoil, Rogowski
Purchase Order Reference : CTR16A4U
Brand : Dent Instruments
Pince souple de type Rogowski.
Nouvelle version, 20% plus fine, donc plus flexible.

gamme : 5 à 5000A (en fonction de l'appareil connecté)
diamètre d'ouverture : 13cm

Note: à utiliser avec un ELITEpro ou un PowerScout, sinon nécessite un intégrateur/amplifieur
TTCHT
Quantity
En Stock
Quick quote for this product
Quick quote for this product
Details


KEY SPECIFICATIONS

Window Size .................  13cm
Current Range* .................5 ‐ 5000 AC
Output ..............................110 mV at 1000 A AC @ 50Hz or 131mV @ 60Hz
Ratio Error** .....................<0.6%

* Depending on meter compatibility. See ELITEpro™ and PowerScout™ specifications for details.
** For maximum performance. keep CT contact surfaces wiped clean and free of debris


ELECTRICAL

Wire Polarity ...............................White = Hi. positive (+) Black = Low. negative (-)
Phasing ...................................... Arrow On Case Points Toward Load
Frequency Range .......................40Hz to 5 kHz

MECHANICAL

Coil Material .................................Blue thermostatic rubber. flame retardant UL 94 V-0 rated
Working Temperature ‐20 to 80°C

Dimensions Rocoil A4




SAFETY

Working Voltage 1000 Vrms
Dielectric Strength 7400 VAC around coil



Product Details
105-Max measure current (A) 5000A
428-Jaw opening 13cm
520-Sensor type Ampflex/Rogowski loop
118-Output type (V/C) Voltage
149-Probe accuracy (%) 0.6%
117-Current measurement type (AC/DC) AC
120-Safety Overvoltage 5200VAC during 1min
35-Dimension (HxWxD) (mm) diam 13cm, lenght 40cm
