EasySplicer | Easy Splicer MK2

Splicer/cleaver set for multi & single mode fibers - MK2 version

Reference : EZYEasySplicerMK2
Serie : EasySplicer Mk2, Easy Splicer Mk2
Purchase Order Reference : EasySplicer MK2
Brand : EasySplicer
Nouveau modèle MK2:
- Capacité de souder les fibres SOC (support en option).
- Couleur de boitier noir et jaune
- Nouvelles électrodes longue durée
- Parties internes revues pour plus de fiabilité
- Nouveau four en céramique/téflon avec pinces de verouillage
- Supports de fibre améliorés
- Nouveau package: nouvelle cliveuse fourni avec petite corbeille, 3 supports de fibre fournis en standard, nouvelle pince-coupante-dénudeuse...

Soudeuse de fibres optiques précise, rapide et très simple d'utilisation.
Précision de soudure: Jusqu'à 0.01dB (MM) et 0.03dB (SM).
Temps de soudure: ~7 secondes.
Compatibilité: fibres 50/125 et 62.5/125 um, 250 & 900um avec gaines (SOC compris, via support spécial optionnel).
Four intégré.
Port USB.
Mémoire interne 1MO, extensible par carte SD.
Ecran couleur 2.8", avec loupe caméra 140x.
Fourni avec 3 paires de porte-fibres (2x 250um, 2x 900um, 2x loose tube), cliveuse, pince-coupante dénudeuse, batterie rechargeable & chargeur/alimentation secteur, mallette de transport.
En Stock
Quick quote for this product
Quick quote for this product

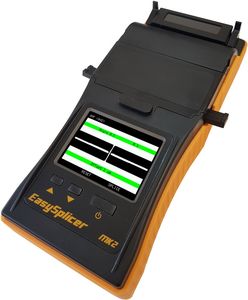

The EasySplicer Mk2 is a Swedish made Fusion Splicer. designed for working daily with fiber optic installations.
It´s small and handy to bring along to any kind of work.
The construction is made very rugged and even if splicing should take place under good conditions (indoors) it is still designed to be used out in the field.

The EasySplicer Mk2 is truly a grand innovation for making Fiber optic Networks. It will revolutianry the ease to build such networks and it will cut the costs for the customers which will generate more work for the installers!


Technical specifications:

  • Splicing method: V-groove (cladding alignment)
  • Fiber Types: SMF.MMF 50/125 µm fiber. 250 µm primary and 900 µm secondary coated fiber.
  • Fiber Handling: Fiber holders. 2 pairs (250 and 900)
  • Splice Programs: 2 pre-defined. SMF & MMF
  • Typical splice Loss: 0.03dB SMF. 0.01dB MMF
  • Typical Cycle time: 7s + 35s (splice cycle+ oven cycle)
  • Sleeve Dimensions: Max 64mm length. 2-5mm diameter supported by oven.
  • Communication: USB. mini usb plug.
  • Memory: Internal 1MB. External SD-Card
  • Monitor: LCD. color. 2.8″. 320×240 pixels
  • Magnification: Camera 140x
  • Operating Environment: 0-40°C. max 95% RH. non-condensed
  • Weight: 800g
  • Power Sources: External power supply. 6V. 1.55A. 100-240VAC 50-60Hz. Build in 3400mAh Li-Ion battery pack
  • Splicing Capacity: 60 splicing cycles
  • Additional Features: Loss estimation. Fiber fault detection. SD-card for logging etc.

Product Details
41-Standard Manufacturer Warranty 1 YEAR
132-Package includes Rechargeable battery, AC adapter, stripper, cleaver, 2 pairs of fiber holders (2x 250um, 2x 900um), carrying hardcase
35-Dimension (HxWxD) (mm) 230x98x53 mm
13-Net Weight 800 g
Download Files
