Extech | SDL900

AC/DC Magnetic Field Meter/Datalogger, memory on SD card

Extech
Reference : EXTSDL900
Serie : SDL, SD Logger, teslamètre, gaussmètre
Purchase Order Reference : SDL900
Brand : Extech
Mesureur de champs magnétiques AC et DC.
Capteur à effet Hall uniaxial avec compensation automatique en température.
Indication de pôle N et S.
Fonctions Min/Max.
Unités: mT, Gauss.
Gammes de mesures: Jusqu'à 1500/3000 mT-G AC/DC.
Précision: +-5%.
Enregistrement des données sur carte mémoire SD 2Go (au format Excel).
TTCHT
Quantity
Expédié sous 1 semaine
Quick quote for this product
Quick quote for this product
Details

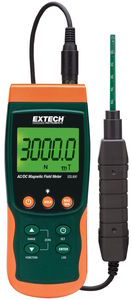

AC/DC Magnetic Field Meter/Datalogger


Records data on an SD card in Excel® format

The SDL900 is an AC/DC Magnetic Meter and Datalogger with automatic temperature compensation. The SDL900 utilizes Hall effect sensor. This meter features an adjustable data sampling rate from 1 to 3600 seconds. Complete with uniaxial magnetic probe sensor with protective cover. SD memory card. 6 AA batteries and hard carrying case.

Features:

  • Utilizes Hall effect sensor with ATC (Automatic Temperature Compensation)
  • Adjustable data sampling rate: 1 to 3600 seconds
  • Memory stores 99 readings manually
  • Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format
  • N pole/S pole indicator
  • Zero button for DC measurement
  • Data Hold and Min/Max
  • Auto power off with disable
  • RS-232 interface with optional software
  • Complete with uniaxial magnetic probe sensor with protective cover. SD memory card. Universal AC adaptor with multi-plugs (US. EU. UK. AUS). 6 AA batteries. and hard carrying case
Product Details
41-Standard Manufacturer Warranty 1 YEAR
358-Field measurement (type) Magnetic
360-Frequency range min (Hz) DC
361-Magnetic field (A/m; T; G) 300/3000 mT; 150/1500 G
364-Resolution (V/m; T) 0.01/0.1 mT: 0.1/1 G
359-Frequency range max (Hz) 50/60Hz
36-Additional Characteristics Datalogging on SD card in Excel Format
132-Package includes SDL900, remote uniaxial sensor, 6 x AA batteries, AC adapter, SD card, carrying hardcase, user manual
35-Dimension (HxWxD) (mm) 182x73x47,5 mm
13-Net Weight 303 g
