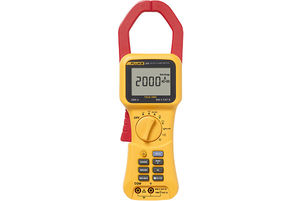

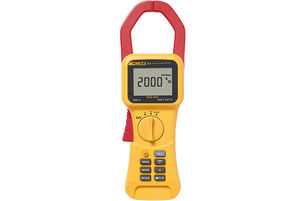

Fluke | 353

TRMS multimeter clamp, 2000A AC/DC, 58mm max. jaw opening

Reference : FLU353
Serie : 353, 355, 350, 35x
Purchase Order Reference : FLUKE-353 (2840252)
Brand : Fluke
Prenez des mesures fiables grâce aux pinces multimètres TRMS Fluke 353 et 355, l'outil de référence pour les mesures à pince du courant élevé jusqu'à 2 000 A. La mâchoire très large s'adapte facilement autour des conducteurs de grande taille, caractéristiques des applications présentant un courant élevé. La conception extrêmement robuste et la certification CAT IV 600 V et CAT III 1 000 V offrent également une meilleure protection de l'utilisateur lors des mesures dans des environnements haute tension.

Les mesures de crête précises peuvent être effectuées à l'aide du mode de mesure de courant de démarrage, idéal pour les moteurs et les charges inductives.
Expédié sous 2 semaines
Quick quote for this product
Quick quote for this product

Versatile and rugged tool for applications with high currents

Confidently take reliable readings with the True RMS. Fluke 353 digital clamp meter; the tools of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors. typically found in high-current applications. The extra rugged design and CAT IV 600 V. CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.

Accurate peak measurements can be taken using the in-rush current mode. ideal for motors and inductive loads.

    • Reliably handle a wide range of high-current applications with 2000 A AC + DC true-rms. 1400 A ac. and 2000 A DC
    • The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
    • CAT IV 600 V. CAT III 1000 V rating for added user protection
    • In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability
    • Accurately measure frequency up to 1 kHz for optimum troubleshooting
    • Quickly analyze readings using the MIN. MAX. and AVG functions
    • A large backlit display allows for easy visibility in low-lit areas
    • Use the display hold feature to capture readings even when the display cannot be viewed
    • Use the low-pass filter to smooth out noisy loads and stabilize readings
    Electrical Specifications
    Current measurement DC and AC 10 Hz to 100 HzRange40 A / 400 A / 2000 A / 1400 AC RMS
    Resolution10 mA / 100 mA / 1 A
    AccuracyA: 1.5% rdg + 15 digits
    A: 1.5% rdg + 5 digits
    Trigger level for Inrush0.50 A / 5.0 A / 5 A
    Trigger level for Hz filter OFF2.50 A / 2.5 A / 8 A
    Trigger level for Hz filter ON0.50 A / 2.5 A / 8 A
    Crest Factor (50/60 Hz)Range40 A / 400 A / 2000 A / 1400 AC RMS
    Crest Factor12 @ 33 A. 2.4 @ 27 A
    2 @ 330 A. 2.4 @ 270 A
    2 @ 1000 A. 2.4 @ 833 A
    Current measurement AC 100.1 Hz to 1 kHzRange40 A / 400 A / 2000 A; 1400 AC RMS
    Resolution10 mA / 100 mA / 1 A
    Accuracy10 A: 3.5% rdg + 15 digits
    10 A: 3.5% rdg + 5 digits
    Trigger level for Inrush0.50 A / 5.0 A / 5 A
    Trigger level for Hz filter OFF2.50 A / 2.5 A / 8 A
    Trigger level for Hz filter ON0.50 A / 2.5 A / 8 A
    Frequency measurementMeasurement range5.0 Hz to 1 kHz
    Resolution0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz)
    Accuracy – 5.0 Hz to 100 Hz0.2% + 2 counts
    Accuracy – 100.1 Hz to 1 kHz0.5% + 5 counts
    Trigger levelRefer to current and voltage tables
    1. Add 2% to error spec for CF > 2
    General Specifications
    BatteriesSix 1.5 V AA NEDA 15 A or IEC LR6
    Battery life (with typical usage. backlight off)100 hours
    Test leadsRated to 1000 V
    Weight.814 kg (1.8 lb)
    Jaw size58 mm (2.28 in)
    Dimensions (L x W x D)300 x 98 x 52 mm (12 x 3.75 x 2 in)
    Safety ratingIEC 61010-2-032. 600 V CAT IV. 1000 V CAT III
    Environmental Specifications
    Operating temperature32°F to +122°F (0°C to +50°C)
    Storage temperature-4°F to 140°F (-20°C to +60°C)
    Operating humidity0 to 95% (non-condensing)
    Operating altitude2000 m
    Storage altitude10.000 m
    IP rating42 (indoor use only)
    Drop test requirements1 m
    EMI. RFI. EMCFCC part 15. IEC/EN 61326-1:1997 class B
    IEC/EN 61326:1997 3V/m. performance criteria B. EN61325
    Temperature coefficientsCurrent0.1% of reading per °C outside 22°C to 24°C
    Voltage0.1% of reading per °C outside 22°C to 24°C
Product Details
41-Standard Manufacturer Warranty 3 YEARS
33-additional measurements Frequency
424-TRMS Yes
428-Jaw opening 58 mm
462-Current AC (Alternative) | DC (Continuous)
34-Bandwidth 50 / 60 HZ
25-Autonomy 100 h
40-Max. AC current 1400 A
119-Safety Level CAT III | CAT IV
132-Package includes 353 clamp meterC43 Soft carrying case6 AA batteriesUser manual3 year warranty
35-Dimension (HxWxD) (mm) 300x98x52 mm
13-Net Weight 814 g
