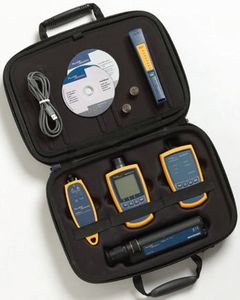

Fluke Networks FTK1300
Kit de vérification fibre multimode Simplifiber Pro
Kit de vérification fibre optique multimode.
Contient:
1 mesureur de puissance optique SimpliFiber Pro.
1 source multimode 850/1300 nm.
1 localisateur de défauts, testeur de continuité et polarité fibre optique VisiFault.
1 microscope x200 d'inspection fibre optique avec adaptateur universel 2.5mm FT120.
1 FindFiber, 1 sacoche, 1 adaptateur ST et un LC, manuels.
Contient:
1 mesureur de puissance optique SimpliFiber Pro.
1 source multimode 850/1300 nm.
1 localisateur de défauts, testeur de continuité et polarité fibre optique VisiFault.
1 microscope x200 d'inspection fibre optique avec adaptateur universel 2.5mm FT120.
1 FindFiber, 1 sacoche, 1 adaptateur ST et un LC, manuels.
Product Details
| 41-Standard Manufacturer Warranty | 1 YEAR |
| 269-Type | optical wattmeter | Optical source |
| 270-Calibrated wavelengths (Powermeter)(nm) | 850 nm | 1300 nm | 1310 nm | 1490 nm | 1550 nm | 1625 nm |
| 273-Accuracy (dBm) | +-0.25 dB |
| 276-Calibrated wavelengths (Source) (nm) | 850 nm | 1300 nm |
| 274-Detector type | InGaAs |
| 271-Min input power (Powermeter)(dBm) | -60 dBm (1300/1310/1490/1550/1625 nm); -52 dBm (850 nm) |
| 272-Max input power (Powermeter)(dBm) | +10 dBm |
| 275-Output power (Source)(dBm) | -20 dBm (MM); 8 dBm minimum, -7 dBm nominal (SM) |
| 25-Autonomy | 50 hours (powermeter); 40 hours (Source) |
| En Stock | Yes |
| 36-Additional Characteristics | optical source & powermeter kit with Visifault VFl, FT120 FiberViewer and FindFiber |
| 132-Package includes | SimpliFiber Pro optical power meter, SimpliFiber Pro 850/1300 multimode source, VisiFault™ Visual Fault Locator, FT120 FiberViewer™ Microscope, FindFiber™ Remote ID source, LC connector adapter, ST connector adapter, USB cable for PC communications, Eight AA alkaline batteries, Carrying case, Getting-started guide and instruction sheets, SimpliFiber Pro product manuals CD, LinkWare CD |
| 35-Dimension (HxWxD) (mm) | SimpliFiber Pro: 165x80x39 mmSource: 142x81x41 mm |
| 13-Net Weight | SimpliFiber Pro: 325 g; Source: 278 g |
