Fluke | T3000FC-Kit

Wireless (Fluke Connect) temperature measurement system

Fluke
Reference : FLUT3000FC-Kit
Serie : 3000FC, Fluke-Connect
Purchase Order Reference : FLK-T3000 FC KIT (4465652)
Brand : Fluke
Le kit de mesure de température sans fil t3000 FC indique la mesure de nombreux paramètres électriques couramment utilisés et vous permet de les corréler avec les relevés de température

Le multimètre sans fil Fluke de la série 3000 FC avec l'application Fluke Connect™ est doté de tous les éléments essentiels pour faciliter les diagnostics et dépannages :

Mesures de tension AC et DC jusqu'à 1 000 V
Mesures de courant AC et DC avec une résolution de 0,01 mA
Continuité, résistance, mesure de diodes, mesures de capacité et de fréquence
Enregistrement MIN/MAX
CAT III 1 000 V, CAT IV 600 V ; IP54

Le module de température de type K sans fil Fluke t3000 FC permet :

Une utilisation en tant que multimètre autonome ou intégré au système
Fonction d'enregistrement pour l'enregistrement et la sauvegarde d'un maximum de 65 000 relevés
TTCHT
Quantity
Expédié sous 2 semaines
Quick quote for this product
Quick quote for this product
Details

Built with Fluke Connect™

The Fluke FC Wireless t3000 Temperature Kit is part of the Fluke Connect team of wireless test tools

Connect the t3000 FC Wireless Temperature Module to your test point. and view the results up to 20 meters away on the 3000 FC Wireless Digital Multimeter.

You’ll save time. with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems. as a stand-alone measurement tool or combine with other Fluke Connect™ modules as a system for multiple measurements.

From short distances. you can even view readings from modules through closed electrical panels. Plus no more writing down data as the Fluke Connect remote modules capture up to 65.000 sets of time stamped min/max/avg readings. using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.

Now you can take readings on moving machinery. with only the measurement module in harm’s way.

* For all specifications: accuracy is specified for one year after calibration. at operating temperatures of 18 °C to 28 °C. with relative humidity at 0 % to 90 %. Accuracy specifications take the form of ± ([ % of Reading ] + [ Number of least significant digits ]).

Detailed Specifications
AC Voltage
Range 1ResolutionAccuracy 2 3 4
45 Hz to 500 Hz500 Hz to 1 kHz
600.0 mV0.1 mV1.0 % + 32.0 % + 3
6.000 V0.001 V
60.00 V0.01 V
600.0 V0.1 V
1000 V1 V
1 All AC voltage ranges are specified from 1 % of range to 100 % of range.
2 Crest factor of ≤ 3 at full scale up to 500 V. decreasing linearly to crest factor < 1.5 at 1000 V.
3 For non-sinusoidial waveforms. add ± (2 % of reading + 2 % full scale) typical. for crest factor up to 3.
4 Do not exceed 107 V-Hz.

DC Voltage. Continuity. Resistance. Diode Test and Capacitance
FunctionRangeResolutionAccuracy
mV600.0 mV0.1 mV0.09 % + 2
V6.000 V0.001 V0.09 % + 2
60.00 V0.01 V
600.0 V0.1 V
1000 V1 V0.15 % + 2
600 Ω1 ΩMeter beeps at < 25 Ω. beeper detects opens or shorts of 250 μs or longer.
600.0 Ω0.1 Ω0.5 % + 2
6.000 kΩ0.001 kΩ0.5 % + 1
60.00 kΩ0.01 kΩ
60.00 kΩ0.1 kΩ
600.0 kΩ0.001 MΩ
50.00 MΩ0.01 MΩ1.5 % + 3
Diode test2.000 V0.001 V1 % + 2
µF1000 nF1 nF1.2 % + 2
10.00 μF0.01 μF
100.0 μF0.1 μF
9999 μF11 μF10 % typical
1 In the 9999 μF range for measurements to 1000 μF. the measurement accuracy is 1.2 % + 2.

AC and DC Current
FunctionRange 1ResolutionAccuracy
mA AC
(45 Hz to 1 kHz)
60.00 mA0.01 mA1.5 % + 3
400.0 mA 30.1 mA
mA DC 260.00 mA0.01 mA0.5 % + 3
400.0 mA 30.1 mA
1 All AC current ranges are specified from 5 % of range to 100 % of range.
2 Input burden voltage (typical): 400 mA input 2 mV/mA.
3 400.0 mA accuracy specified up to 600 mA overload.

Frequency
RangeResolutionAccuracy 1
99.99 Hz0.01 Hz0.1 % + 1
999.9 Hz0.1 Hz
9.999 kHz0.001 kHz
99.99 kHz0.01 kHz
1 Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.

Input Characteristics
FunctionOverload
protection
Input impedance
(nominal)
Common mode rejection ratio (1 kΩ unbalance)Normal mode rejection
1100 V RMS> 10 MΩ < 100 pF> 120 dB at DC. 50 Hz or 60 Hz> 60 dB at 50 Hz or 60 Hz
1100 V RMS> 10 MΩ < 100 pF> 60 dB. DC to 60 Hz
1100 V RMS> 10 MΩ < 100 pF> 120 dB at DC. 50 Hz or 60 Hz> 60 dB at 50 Hz or 60 Hz
Open circuit test voltageFull scale voltageTypical short circuit current
To 6 MΩ50 MΩ
1100 V RMS< 2.7 V DC< 0.7 V DC< 0.9 V DC< 350 mA
1100 V RMS< 2.7 V DC2.000 V DC< 1.1 mA

mA Function
Overload ProtectionFused. 44/100 A. 1000 V FAST Fuse
Overload600 mA overload for 2 minutes maximum. 10 minutes rest minimum

MIN/MAX Recording Accuracy
DC functionsThe specified accuracy of the measurement function ± 12 counts for changes > 350 mS in duration.
AC functionsThe specified accuracy of the measurement function ± 40 counts for changes > 900 mS in duration.

General Specifications
Maximum voltage between any terminal and earth ground1000 V DC or AC RMS
Ω fuse protection from A inputs0.44 A (44/100 A. 440 mA). 1000 V FAST Fuse. Fluke specified part only
Display (LCD)Update rate4/sec
Volts. amps. ohms6000 counts
Frequency10.000 counts
Capacitance1.000 counts
Battery typeThree AA Alkaline batteries. NEDA 15A IEC LR6
Battery life250 hours minimum
RF communications2.4 GHZ ISM Band
RF communication rangeOpen air. unobstructedUp to 20m
Obstructed. sheetrock wallUp to 6.5m
Obstructed. concrete wall. or steel electrical enclosureUp to 3.5m
TemperatureOperating-10 °C to 50 °C
Storage-40 °C to 60 °C
Temperature coefficient0.1 X (specified accuracy) /°C (<18 c="" or="">28 °C)
Relative humidity0 % to 90 % (0 °C to 35 °C)
0 % to 75 % (35 °C to 40 °C)
0 % to 45 % (40 °C to 50 °C)
AltitudeOperating2.000 m
Storage12.000 m
Electromagnetic compatibility
EMI. RFI. EMC. RF
EN 61326-1:2006. EN 61326-2-2:2006
ETSI EN 300 328 V1.7.1:2006. ETSI EN 300 489
V1.8.1:2008. FCC Part 15 Subpart C Sections 15.207. 15.209. 15.249
FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety complianceANSI/ISA 61010-1 / (82.02.01)3rd edition
CAN/CSA-C22.2 No 61010-1-123rd edition
UL 61010-13rd edition
IEC/EN 61010-12010
CertificationsCSA. FCC. CE
Ingress Protection (IP) ratingIP54
Pollution degree2
Size (H x W x L)4.75 cm x 9.3 cm x 20.7 cm
(1.87 in x 3.68 in x 8.14 in)
Weight340 g (12 oz)
Note: Not compatible with Fluke CNX test tools


Fluke t3000 FC Wireless K-Type Temperature Module

General Specifications
Range K-Type-200 °C to 1372 °C
Resolution0.1 °C
Accuracy± [0.5% + 0.5°C] counts
Input terminalsK-type mini
LCD w/backlight3 ½ digits
Log rate/interval1 sec minimum/adjustable by PC
Battery type2 AA. NEDA 15 A. IEC LR6
Battery life400 hours
MemoryRecord up to 65.000 readings
RF communications2.4 GHZ ISM Band
RF communication rangeOpen air. unobstructed
Up to 20 m
Obstructed. sheetrock wallUp to 6.5 m
Obstructed. concrete wall or steel electrical enclosureUp to 3.5 m
Operating temperature-10 °C to +50 °C
Storage temperature-40 °C to +60 °C
Temperature coefficient0.01 % of reading +0.03 °C per °C
Temperature scaleITS-90
Operating humidity90 % at 35 °C. 75 % at 40 °C. 45 % at 50 °C
AltitudeOperating
2.000 m
Storage12.000 m
EMCEN 61326-1:2006
Safety complianceIEC 61010-1. CAT I. 3rd edition Pollution Degree 2
CertificationsCSA. CE. FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) ratingIP42
Pollution Degree2
Size (HxWxD)16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
Weight.22 kg (8 oz)
Note: Not compatible with Fluke CNX test tools
Product Details
41-Standard Manufacturer Warranty 3 YEARS
173-ATEX No
686-Number of channels 1 channel
160-Temperature accuracy 0.5 %
109-Sensor (Type) Thermocouple
110-Min measure range (°C) -200 °C
111-Max measure range (°C) +1372 °C
112-Resolution (°C) 0.1°C

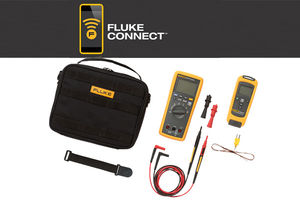

132-Package includes Fluke 3000 FC Series Wireless MultimeterFluke t3000 K-Type Thermocouple ThermometerTL175 Test LeadsAC175 Alligator Clips80PK-1 K-Type Bead ThermocoupleOther K-Type temperature probes also availableMagnetic hanging strap
13-Net Weight 226 g
653-Windows compatible Yes
654-iOS compatible Yes
655-Android compatible Yes
