Fluke | VOLTALERT 2AC

Non contact AC voltage detector, 90/200-1000VAC, CATIV

Fluke
Reference : FLU2AC
Serie : 2AC, voltalert
Purchase Order Reference : FLK2AC
Brand : Fluke
Détecteur de tension Fluke 2AC VoltAlert.
Gamme de tension: 90-1000V AC ou 200-1000V, voir les options.
CAT IV 1000V.
IEC 61010-1:2001, UL 61010-1 (2e éd.), CAN/CSA-C22.2 N° 61010-1-04, ISA-82.02.01 degré de pollution: 2.
Bouton de contrôle des piles.
Circuit d'alimentation optimisé pour économiser les piles tout en le laissant en fontionnement en permanence.
TTCHT
Quantity
En Stock
Quick quote for this product
Quick quote for this product
Details

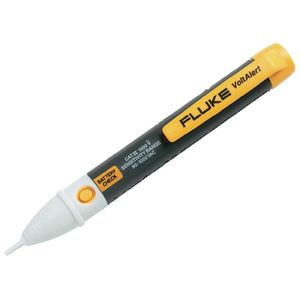

Fluke 2AC VoltAlert™ Voltage Detector

Always on for faster. safer voltage testing

2AC is the latest addition to the VoltAlert™ ac non- contact voltage tester family from Fluke and is designed to be pocket-sized and easy to use. The 2AC tests for energized circuits and defective grounds. whether it’s for an electrician on the factory floor or the do-it-yourselfer around the house. The tip of the pocket-sized tester will glow red when within close proximity of an outlet. terminal strip. or power cord where voltage is present.



  • Voltage detection from 200 (or 90)  to 1000 V ac. suitable for a wide range of residential. commercial and industrial needs.
  • NEW! Always on. using special low power circuitry to sustain battery life and ensure your 2AC is always ready.
  • NEW! Innovative ‘Battery Check’ button function ensures battery is in good condition*
  • Category IV – 1000 V overvoltage rated product for best in class user protection
  • Integrated clip design. optimized for pocket storage
  • Powered by 2x AAA batteries (included)
  • Fluke ruggedness and reliability
  • Two-year warranty

*Use of Battery Check function is optional and for convenience only. it is not intended as a substitute for checking the unit on a known live source before and after use.





Specifications
Operating principleSenses the steady state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage.
Safety Compliance:Meets IEC 61010-1:2001. UL 61010-1 (2nd ed.). CAN/CSA-C22.2 No. 61010-1-04. and ISA-82.02.01 Pollution Degree 2
EMC Compliance:Meets IEC 61326-1:2006
Operating:200 V ac to 1000 V ac. CAT IV 1000 V rated
Temperature:Operating: -10 °C to 50 °C (-14 °F to 122 °F)
Storage: -10 °C to 50 °C (-14 °F to 122 °F)
Humidity:0 % to 95 % (0 °C to 30 °C)
0 % to 75 % (30 °C to 40 °C)
0 % to 45 % (40 to 55 °C)
Altitude:2000 m (CAT IV 1000 V)
Cleaning:Clean with damp cloth
Battery LifeTypical battery life of greater than one year
Warranty Period:Two years
Product Details
41-Standard Manufacturer Warranty 2 YEARS
452-AC voltage max. (V) 1000V AC
454-AC voltage min. (V) 90 or 200V AC, depends of model
453-DC voltage max. (V) na
455-DC voltage min. (V) na
25-Autonomy > 1an
119-Safety Level CAT I | CAT II | CAT III | CAT IV
120-Safety Overvoltage CAT IV 1000V
132-Package includes User manual
35-Dimension (HxWxD) (mm) nc
13-Net Weight nc
