GreenTEG gSKIN® U & Flux Kit
Kit de mesure/enregistrement du coefficient U - Inclut un enregistreur avec 2 sondes de température et 1 capteur de flux thermique
U-Value and Heat Flux Measurement Kit.
- Calibrated Plug-and-Play solution.
- Measurement of U-value (W/(m²K)), heat flux (W/m²), and 2 temperatures (°C).
- Compatible with standards ISO 9869 and ASTM C1046 /ASTM C1155.
- Stores up to 2 million data points.
- Battery lifetime >1 month.
- High sensitive thermal detectors.
- Read-out software included.
- Compact design.
- USB interface.
- Comes with MOUNT-1235 (double sided adhesive tape).

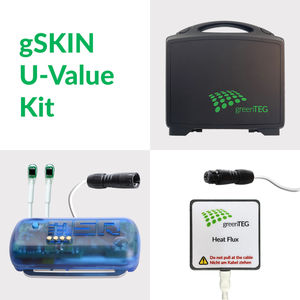

gSKIN® KIT includes (for more details consult the datasheets of the individual products): Sensor: gSKIN®-XO 67 7C (30mm x 30mm), Logger: gSKIN® DLOG-4231 and double sided mounting tape (MOUNT-1235).
- Calibrated Plug-and-Play solution.
- Measurement of U-value (W/(m²K)), heat flux (W/m²), and 2 temperatures (°C).
- Compatible with standards ISO 9869 and ASTM C1046 /ASTM C1155.
- Stores up to 2 million data points.
- Battery lifetime >1 month.
- High sensitive thermal detectors.
- Read-out software included.
- Compact design.
- USB interface.
- Comes with MOUNT-1235 (double sided adhesive tape).
gSKIN® KIT includes (for more details consult the datasheets of the individual products): Sensor: gSKIN®-XO 67 7C (30mm x 30mm), Logger: gSKIN® DLOG-4231 and double sided mounting tape (MOUNT-1235).
VAT incl VAT excl
Quantity
Expédié sous 48H
Quick quote for this product
Quick quote for this product
Details
U-Value Kit
U-value calibrated and plug-and-play solution allows to measure the thermal transmittance of a material or an assembly for the building industry. greenTEG’s unique solution allows to measure accurately U-Value (U-factor, Thermal transmittance), R-value and temperature of your building, wall, roof…
Do you need a U-value calculator?
Discover how to measure the U-value with greenTEG’s U-value and Heat Flux Measurement kit!
Our measurement-approach uses a heat flux sensor and two temperature sensors. This approach is standardized in ISO 9869, ASTM C1046 and ASTM C1155. This is the only method which delivers reliable quantitative in-situ information about a building envelope.
Features & Benefits
- Calibrated Plug-and-Play solution.
- Measurement of U-value (W/(m²K)), heat flux (W/m²), and 2 temperatures (°C).
- Compatible with standards ISO 9869 and ASTM C1046 /ASTM C1155.
- Stores up to 2 million data points.
- Battery lifetime >1 month.
- High sensitive thermal detectors.
- Read-out software included.
- Compact design.
- USB interface.
- Comes with MOUNT-1235 (double sided adhesive tape).
Specifications
- gSKIN® KIT includes (for more details consult the datasheets of the individual products):
- Sensor: gSKIN®-XO 67 7C (30mm x 30mm), Logger: gSKIN® DLOG-4231 and double sided mounting tape (MOUNT-1235)
- Heat Flux Range Min / Max [W/m²]: ±300
- Heat Flux Resolution [W/m²]: <0.22 Temperature Accuracy [°C]: ±0.5 (-10…+46 °C) ±2.0 (-55…+125 °C)
- Min. Sensor Sensitivity (S) [µV/(W/m²)]: 7.0 (sensor calibration data already loaded onto logger for simple and fast plug-and-play measurements).
- Data Storage Capacity [# measurements]: >2’000’000
- Battery Lifetime [days]: >30 at lowest measurement frequency (2/d). Rechargeable.
- Software: Installation – SW sent by email / via download link
- Logger Dimensions (mm): 52 x 20 x 15
- Bit Resolution [bits]: 12
- Operation Modes: Autonomous / Live
- Operating Temperature Range Min/Max [°C]: -40 / 100 (-25 / 65 for Logger)
- Operating System: Windows 2000 / XP / Vista / 7 / 8
- Calibration Accuracy [±%]: 3 (Sensor calibration data already loaded onto logger for simple and fast plug-and-play measurements).
- Calibration Temperature Range Min/Max [°C]: -30 / 70
- Heat Flux Sensor Cable Length [m]: 1.5 (with connector)
- Temperature Sensor 1 / 2 Cable Length [m]: 5.0 / 1.0
- Measurement Frequency: 1/s to 1/h
- Computer Interface: USB
Use Cases
- Building Insulation Evaluation
- Building Envelope Performance Monitoring
- Zero-energy Building Assessment
- and more...
