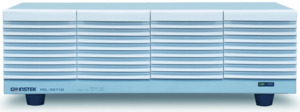

GW Instek PEL-3211
Booster pour charge PEL-3111, 2100W, 420A, 1.5-150V
Booster pour charge électronique programmable.
Compatibilité: PEL-3111 seulement.
Tension: 1.5 - 150 V.
Courant: 420 A.
Puissance max.: 2100 W.
Jusqu'à 9450 W en mode parallèle avec 1 PEL-3111 et 4 boosters PEL-3211.
Compatibilité: PEL-3111 seulement.
Tension: 1.5 - 150 V.
Courant: 420 A.
Puissance max.: 2100 W.
Jusqu'à 9450 W en mode parallèle avec 1 PEL-3111 et 4 boosters PEL-3211.
VAT incl VAT excl
Quantity
Expédié sous 2 semaines
Quick quote for this product
Quick quote for this product
Product Details
| 41-Standard Manufacturer Warranty | 2 YEARS |
| 622-Accuracy (V) | Up to 1.2% set + 1.1% fs (depends of modes) |
| 623-Current accuracy | Up to 1.2% set + 1.1% fs (depends of modes) |
| 16-Maximum input Voltage (V) | 150 V |
| 23-Voltage resolution | na |
| 53-Current resolution (A) | na |
| 68-Max. Power | 2100 W |
| 78-Regulation mode | CV Mode Regulation |
| 79-Max input current (A) | 420 A |
| 717-Programmable | No |
| En Stock | No |
| 36-Additional Characteristics | Compatibility: only with PEL-3111 load.Up to 9450W in parallel mode with 1 PEL-3111 & 4 PEL-3211 boosters. |
| 132-Package includes | Power cord, user manual on CD |
| 35-Dimension (HxWxD) (mm) | 147.8x427.7x592.5 mm |
| 13-Net Weight | ~23 kg |
