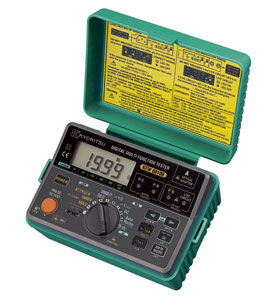

Kyoritsu K6010B
Testeur multi fonctions, 20-200MOhm, 500/1000V
Continuité: 20/200Ohm
Isolement: 500/1000V, 20/200MOhm
Impédance de boucle: 20/2000Ohm
RCD: 10/30/100/300/500mA
Mémoire: 300 résultats de mesure
Isolement: 500/1000V, 20/200MOhm
Impédance de boucle: 20/2000Ohm
RCD: 10/30/100/300/500mA
Mémoire: 300 résultats de mesure
VAT incl VAT excl
Quantity
Expédié sous 1 semaine
Quick quote for this product
Quick quote for this product
Product Details
| 41-Standard Manufacturer Warranty | 3 YEARS |
| 103-Differential test (A) | 10mA | 30mA | 100mA | 300mA | 500mA |
| 91-Leads compensation (Y/N) | Yes |
| 94-Test voltage (V) | 500 V | 1000 V |
| 81-Insulation min (Ohm) | nc |
| 82-Insulation max (Ohm) | 200 MOhm |
| 80-Voltage measure max (V) | nc |
| 25-Autonomy | nc |
| 119-Safety Level | CAT I | CAT II | CAT III |
| En Stock | No |
| 120-Safety Overvoltage | CAT III 300V |
| 36-Additional Characteristics | - |
| 132-Package includes | 7025(Test Lead), KAMP10 (Test Lead with IEC Connector), Pouch for Test leads, Shoulder Strap, Shoulder Pad, Instruction Manual |
| 35-Dimension (HxWxD) (mm) | 175x115x86 mm |
| 13-Net Weight | 840 g |
Download Files
- Brochures- fiches techniques
