Langer XF-R 400-1
Sonde de champ proche - H-Field XF - 30MHz à 6GHz
XF-R 400-1
H-Field Probe 30 MHz up to 6 GHz
Due to its large diameter (25 mm) and its high resolution, the XF-R 400-1 H-field probe is suitable for measurements at distances up to 10 cm around assemblies and devices.
The XF-R 400-1 is a passive near-field probe. In principle it has the same structure as the XF-R 100-1 and XF-R 3-2 probes. The near-field probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 ? input. The H-field probe has an internal terminating resistance.
H-Field Probe 30 MHz up to 6 GHz
Due to its large diameter (25 mm) and its high resolution, the XF-R 400-1 H-field probe is suitable for measurements at distances up to 10 cm around assemblies and devices.
The XF-R 400-1 is a passive near-field probe. In principle it has the same structure as the XF-R 100-1 and XF-R 3-2 probes. The near-field probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 ? input. The H-field probe has an internal terminating resistance.
Details
XF-R 400-1
H-Field Probe 30 MHz up to 6 GHz
Due to its large diameter (25 mm) and its high resolution, the XF-R 400-1 H-field probe is suitable for measurements at distances up to 10 cm around assemblies and devices.
The XF-R 400-1 is a passive near-field probe. In principle it has the same structure as the XF-R 100-1 and XF-R 3-2 probes. The near-field probe is small and handy. It has a current attenuating sheath and, therefore, is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probe has an internal terminating resistance.
Technical parameters
| Frequency range | 30 MHz ... 6 GHz |
| Probe head dimensions | Ø ≈ 25 mm |
| Connector - output | SMA, female, jack |

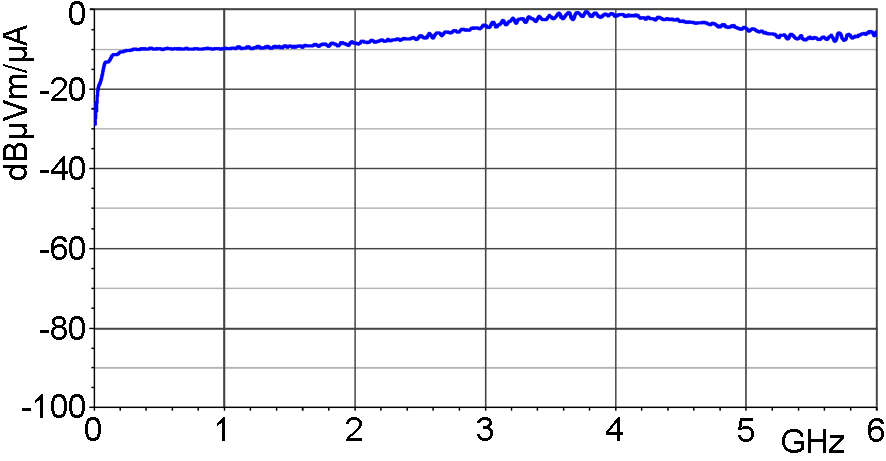

| Frequency response [dBµV] / [dBµA/m] | ![Frequency response [dBµV] / [dBµA/m]](https://www.langer-emv.de/fileadmin/Bilder300/Disturbance%20emission_near%20field%20probe_XF-R%20400_frequency%20response_en_wPZ.png?v=1618988436185) |

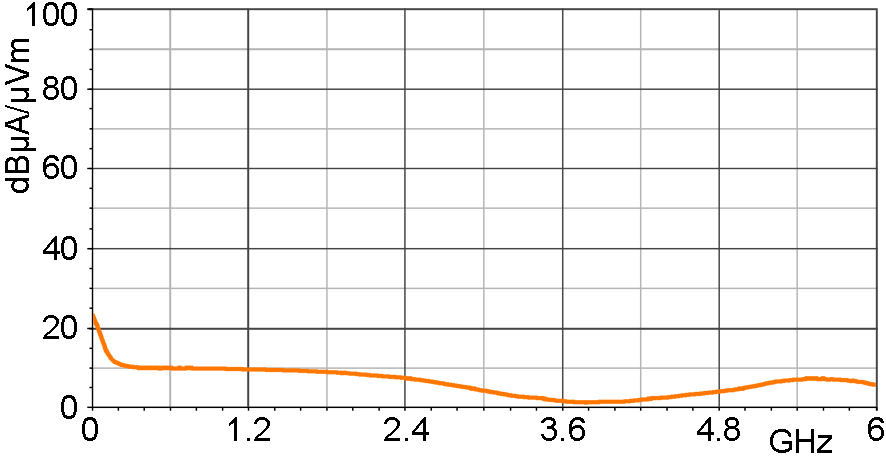

| H-field correction curve [dBµA/m] / [dBµV] | ![H-field correction curve [dBµA/m] / [dBµV]](https://www.langer-emv.de/fileadmin/Bilder300/Disturbance%20emission_near%20field%20probe_XF-R%20400_H-field%20correction%20curve_en_wPZ.png?v=1618988436185) |

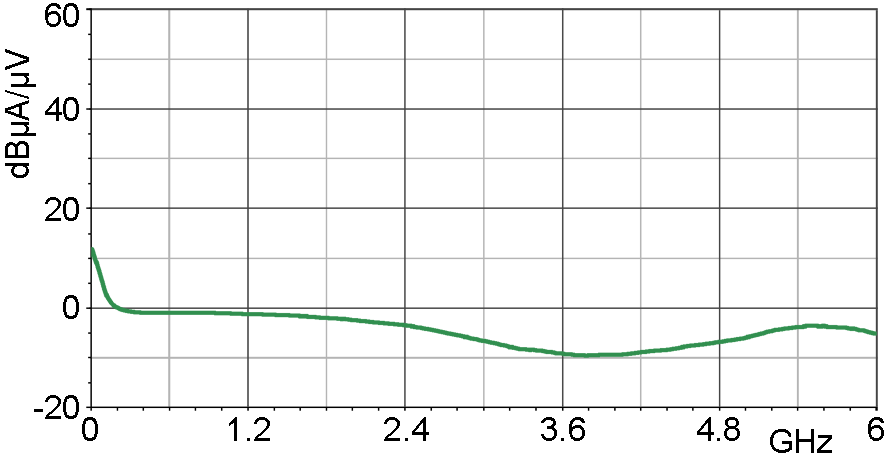

| Current correction curve [dBµA] / [dBµV] | ![Current correction curve [dBµA] / [dBµV]](https://www.langer-emv.de/fileadmin/Bilder300/Disturbance%20emission_near%20field%20probe_XF-R%20400_current%20correction%20curve_en_wPZ.png?v=1618988436185) |

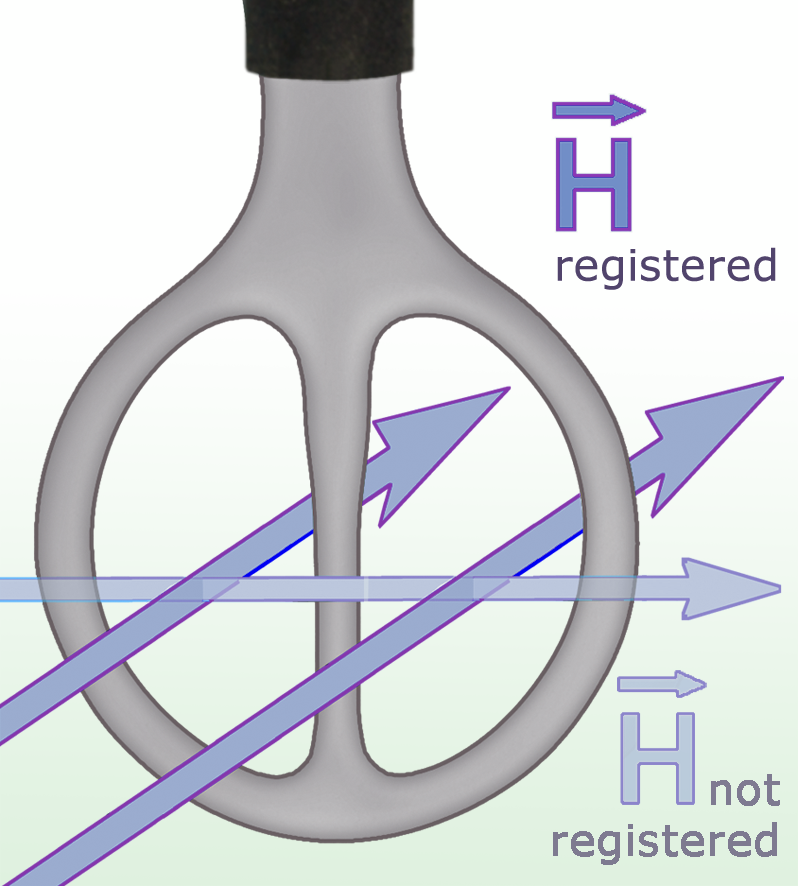

| Measuring principles |  |
