Sefram | 7357

AC+DC TRMS digital multimeter with 4-20mA calibrator

Sefram
Reference : SEF7357
Purchase Order Reference : SEFRAM 7357
Brand : Sefram
Multimètre de précision:
- Mesure des tensions jusqu''à 1000V TRMS AC+DC et 1000V DC
- Précision de base de 0,05%
- Mesure des courants jusqu''à 1A
- Mesure de fréquence
- Mesure de résistance jusqu''à 50 Mohms
- Test de continuité avec buzzer
- Test diode
- Filtre numérique pour environnement perturbé

Calibrateur de process:
- Générateur de courant 4-20mA ou 0-20mA
- Mode pas à pas, valeur prédéfinies (rampes) ou valeurs utilisateur
- Rampes automatiques ou manuelles
- Mode simulateur et indication du courant et en %
- Mode alimentation de boucle, avec mode HART (résistance de 250 ohms en série)
TTCHT
Quantity
Expédié sous 2 semaines
Quick quote for this product
Quick quote for this product
Details

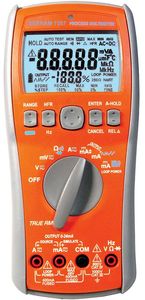

Sefram 7357
Process Multimeter. 50.000 counts. TRMS AC+DC with current source and loop power





Multimeter

  • Voltage measuremet up to 1000V TRMS AC+DC and 1000V DC
  • Basic accuracy: 0.05%
  • Current measurement up to 1A
  • Frequency measurement
  • Resistance measurement up to 50 Mohms
  • Continuity test with buzzer
  • Diode test
  • Digital filter (low-pass)



Process calibrator

  • Current source: 4-20mA or 0-20mA
  • Modes: steps. pre-defined values. user defined values
  • Manual ot automatic current slopes
  • Simulator mode (energy supplied by application)
  • Power loop mode. with HART capability (250 ohms serial resistor)



General features

  • 100 mesurements memory
  • MIN/MAX/AVG. REL. Auto-HOLD functions
  • USB (opto isolated) interface
  • Panoramic LCD. with auto-backlight
  • PC application software supplied
  • Safety: 600V CAT IV and 1000V CAT III

Product Details
41-Standard Manufacturer Warranty 1 YEAR
421-Generated ranges Current: 0-20 mA or 4-20mA
411-Measurement/generate (type) mA
561-Loop power
  • 30V, 50mA, 1.25kOhm.
  • Mode HART: 24V, 50mA, 1kOhm
24-Accuracy (%) 0.05% (typical DC)
36-Additional Characteristics Power loop mode, with HART capability (250 ohms serial resistor)
132-Package includes 1 set of test leads, USB cord, PC software, user manual
35-Dimension (HxWxD) (mm) 207x95x52 mm
13-Net Weight 630 g
