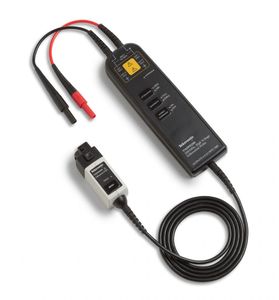

Tektronix THDP0100
Sonde différentielle haute tension, 100MHz, 40MOhm, +/- 6000V, 100x/1000x
Sonde différentielle haute tension. 100MHz. 40MOhm. +/- 6000V. 100x/1000x
Atténuation : 100x/1000x
Bande passante : 100MHz
Tension : +/-6000V
Impédance d'entrée : 40MOhm
Atténuation : 100x/1000x
Bande passante : 100MHz
Tension : +/-6000V
Impédance d'entrée : 40MOhm
Details
THDP 0100
Key features
Overrange Indicator
Safety Certified
Switchable Attenuation
Switchable bandwidth limit
Applications
Floating measurements
Switching power supply design
Motor drive design
Electronic ballast design
CRT display design
Power converter design and service
Power device evaluation
Specifications
Attenuation: 100X / 1000X
Differential Voltage: 1000X: ±6000 V - 100X: ±600 V
Common Mode Voltage: ±6000 V
Maximum Input Voltage-to-Earth: 2300 V CAT I - 1000 V CAT III
Bandwidth: 100 MHz
Rise Time: <1.8 ns="" div="">
Slew Rate: <2500 v="" ns="" at="" 1="" 1000="" gain="" div="">
Input Impedance at the Probe Tip: 40 MΩ || <2.5 pf="" div="">
Typical CMRR DC: DC: DC: > -80 dB - 100 kHz: > -60 dB - 3.2 MHz: > -30 dB - 100 MHz: > -26 dB
Cable Length: 1.5 m
Product Details
| 41-Standard Manufacturer Warranty | 1 YEAR |
| 17-Input capacitance (pF) | 2.5 pF |
| 380-Input differential voltage max. (V) | 6000 V |
| 48-Rise Time (s) | 3.5 ns |
| 15-Input Impedance (Ohm) | 40 MOhm |
| 379-Input differential voltage min. (V) | 600 V |
| 4-Bandwidth (Hz) | 100 MHz |
| 52-Cable Length | 1.5 m |
| En Stock | Yes |
| 120-Safety Overvoltage | 2300 V CAT I1000 V CAT III |
| 132-Package includes | Hook clips x2, pincer clips x2, alligator clips x2, extension cables x2, test leads x2, High voltage differential browser, probe holder |
| 35-Dimension (HxWxD) (mm) | nc |
| 13-Net Weight | nc |
