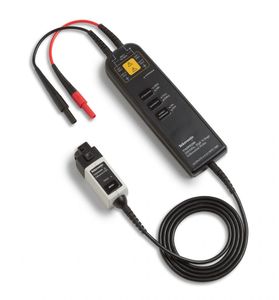

Tektronix TMDP0200
Sonde différentielle haute tension, 200MHz, 5MOhm, +/-750V, 25x/250x
Sonde différentielle haute tension. 200MHz. 5MOhm. +/-750V.
Atténuation : 25x/250x
Bande passante : 200MHz
Tension : +/-750V
Impédance d'entrée : 5MOhm
Atténuation : 25x/250x
Bande passante : 200MHz
Tension : +/-750V
Impédance d'entrée : 5MOhm
Details
TMDP 0200
Key features
Overrange Indicator
Safety Certified
Switchable Attenuation
Switchable bandwidth limit
Applications
Floating measurements
Switching power supply design
Motor drive design
Electronic ballast design
CRT display design
Power converter design and service
Power device evaluation
Specifications
Attenuation: 25X / 250X
Differential Voltage: 250X: ±750 V - 25X: ±75 V
Common Mode Voltage: ±750 V ±1500 V ±6000 V
Maximum Input Voltage-to-Earth: 550 V CAT I - 300 V CAT III
Bandwidth: 200 MHz
Rise Time: <1.8 ns="" div="">
Slew Rate: <275 v="" ns="" at="" 1="" 250="" gain="" div="">
Input Impedance at the Probe Tip: 5 MΩ || <2 pf="" div="">
Typical CMRR DC: > -80 dB - 100 kHz: > -60 dB - 3.2 MHz: > -30 dB - 100 MHz: > -26 dB
Cable Length: 1.5 m
Product Details
| 41-Standard Manufacturer Warranty | 1 YEAR |
| 17-Input capacitance (pF) | 2 pF |
| 380-Input differential voltage max. (V) | 750 V |
| 48-Rise Time (s) | 1.8 ns |
| 15-Input Impedance (Ohm) | 5MOhm |
| 379-Input differential voltage min. (V) | 75V |
| 4-Bandwidth (Hz) | 200 MHz |
| 52-Cable Length | 1.5 m |
| En Stock | Yes |
| 120-Safety Overvoltage | 550 V CAT I300 V CAT III |
| 132-Package includes | Hook clips x2, pincer clips x2, alligator clips x2, extension cables x2, test leads x2, High voltage differential browser, probe holder |
| 35-Dimension (HxWxD) (mm) | nc |
| 13-Net Weight | nc |
