Chauvin-Arnoux | CA6117

Multifunctions installation controller, NFC15-100,FDC16-600, color display, Li-ion battery, B RCD

Reference : CARCA6117
Serie : CA 6116N, CA6116N, CA6113, CA6117
Purchase Order Reference : P01145460
Brand : Chauvin-Arnoux
Contrôleur d'installations multifonctions.
Grand écran couleur, batterie Lithium-ion.
DDR type AC, A & B
Mesures: Isolement, contrôle de terre (1P, 1P sélective, 3P, terre sous tension (boucle de terre)), test DDR, continuité, tension, courant, fréquence, rotation de phases.
Mesure de puissance active monophasé et triphasé: Par pinces de courant (en option).
Table des fusibles embarquée.
Mesure de chute de tension dV%(Zi).

Vérifications des installations selon les normes internationales (IEC 60364-6, NF C 15-100, VDE 100, FD C 16-600, etc) avec interprétation des mesures selon les normes.
Prise en main rapide et simplicité d'accès aux mesures.
Convivialité grâce à un écran graphique extra-large rétro-éclairé.
Excellente stabilité des mesures y compris en milieu industriel perturbé.
Raccordements fiables et simples.
Aide contextuelle pour chaque fonction.
Adapté pour tous types de régimes de neutre (TT, TN, IT).
Mémorisation hiérarchisée et personnalisée des résultats de mesure.
Expédié sous 2 semaines
Quick quote for this product
Quick quote for this product

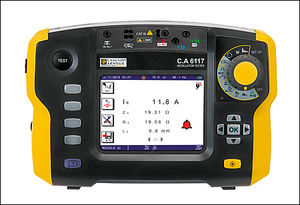

C.A 6117
17 functions in one instrument!
The C.A 6117 is an ALL-IN-ONE instrument for electrical installation testing according to the national and international standards (IEC 60364-6. NF C 15-100. VDE 100. FD C 16-600. etc.). It combines design. ergonomics. simplicity. high performance. rapidity and accuracy.
Suitable for all types of neutral systems (TT. TN. IT). it can be used in all sectors: industry. tertiary and housing.

Rugged and compact. the C.A 6117 is specially designed for quick and effective familiarization. On the large colour graphic LCD screen with backlighting. users can view the essential results at a glance.
A rotary switch on the instrument's front panel provides direct access to all the functions. A large number of audio signals and visual symbols allow quick interpretation of the results in accordance with the standards. The contextual help for each function guides users step-by-step or simply when they require it. Its storage capacity allows users to keep up to 1.000 tests. The C.A 6117 is equipped with a USB output for recovering the data.

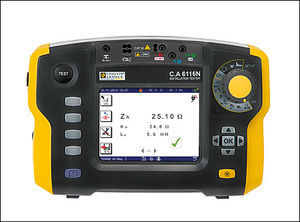

The C.A 6117 offers excellent measurement stability. including in disturbed industrial environments. All the measurements needed to test an electrical installation are available: continuity. resistance. insulation. earth and selective earth. loop impedance and type-A or AC RCDs. The C.A 6116N can also measure voltage. frequency. current via a clamp. active power. harmonics and phase rotation/sequence.
In addition. the C.A 6117 is equipped with an integrated fuse table. so it can perform measurements on type-B RCDs. It can also measure voltage drop.

Designed and manufactured in France. le C.A 6117 has been developed according to eco-design procedures.

Analysis of the results
The measurements performed with the C.A 6117 can be processed with the DataView® multi-product expert software. DataView® automatically recognizes the instrument when it is connected to the PC and opens the corresponding menu. In the form of a tree-structure. it offers users direct access to the data recorded in the instrument. its setup. etc.
It is equipped with a number of predefined report templates which comply with the requirements of the standards.
Users can also create their own templates to fit their needs.
The ICT software delivered as standard is equipped with the following functions for quick. simplified analysis of the measurements recorded: recovery of the data. configuration of the instrument. customization of measurement sessions with transfer into the instrument and report generation.

Product Details
41-Standard Manufacturer Warranty 1 YEAR
103-Differential test (A) 10mA | 30mA | 100mA | 300mA | 500mA | 1000mA | 650mA | adjustable range
91-Leads compensation (Y/N) Yes
102-Method of Earth measurement (Type) With rod | Without rod
426-Measures Undervoltage | Outvoltage
94-Test voltage (V) 50 V | 100 V | 250 V | 500 V | 1000 V
81-Insulation min (Ohm) 10 kOhm (range)
101-Measure (Type) Earth | Earth coupling | Continuity | differential test | Insulation
82-Insulation max (Ohm) 2 GOhm (range)
80-Voltage measure max (V) 550 V AC/DC
25-Autonomy 30 hours max.
119-Safety Level CAT I | CAT II | CAT III | CAT IV
120-Safety Overvoltage CAT III 600V / CAT IV 300V
36-Additional Characteristics
  • DDR type AC, A et B
  • Mémoire des mesures jusque 1000 tests, export sur PC par USB
  • Mesure de puissance active (0-110kW monophasé)(0-330kW triphasé): Pinces de courant en option.
  • Visualisation de la forme d'onde simultanément tension et courant.
  • Harmoniques: Tension et courant; rang 0 à 50; THD.
  • Ecran couleur
  • Alimenté par une batterie Lithium-ion
  • Table des fusibles embarquée
  • Mesure de chute de tension dV%(Zi)
542-Metrology/Quality documentation supplied Calibration certificate (With measures table)

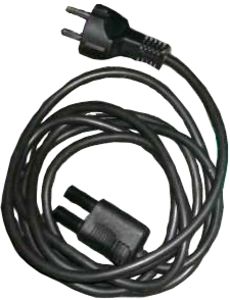

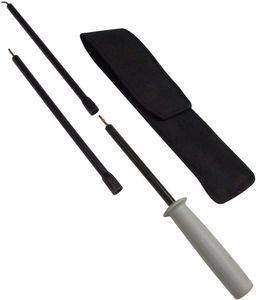

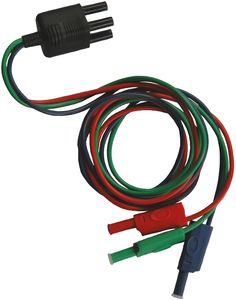

132-Package includes 1 USB cord, 1 tripod/power plug cord, 1 tripod/3 banana plugs cord, 3 touch points diam.4mm, 3 alligator clips, 2 bended 3m leads, 1 remote probe, 1 AC adapter, 1 handle-strap, 1 comfort strap, 1 carrying softcase, 1 datalogging software, 5 safety cards & user manuals (1 by language), 1 calibration certificate
35-Dimension (HxWxD) (mm) 280x190x128 mm
13-Net Weight 2.2 kg
