Objectif pour caméras Flir Axxx, Exx, T5xx et T8xx - Macro - 2.0x - f 17.5mm - avec sacoche

Flir T300238 (Macro)

Objectif pour caméras Flir Axxx, Exx, T5xx et T8xx - Macro - 2.0x - f 17.5mm - avec sacoche

Reference : FLIT300238

Serie : Exx, T5xx, T8xx, Axxx

Purchase Order Reference : T300238

Objectif pour caméras thermique FLIR série Exx (E76, E86, E96), T5xx (T530, T540, T560), T8xx (T840, T860, T865) et Axxx (A400, A500, A700).
Modèle Macro.
Facteur d'agrandissement: 2.0x.
f = 17.5mm.
Distance de travail: 18mm.

VAT incl VAT excl

Quantity

Expédié sous 2 semaines

Quick quote for this product

Details

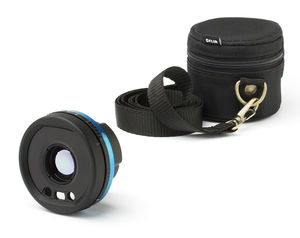

FLIR T300238

IR lens, Macro 2.0x, f=17.5 mm with case

This Macro lens provides 2× magnification compared to the standard 24° lens in Macro mode. It is developed for R&D usage or development purposes, such as looking at PCB's or small electronic components.

Imaging and optical data
Field of view (FOV)	Dependent on the IR resolution of the camera: 320 × 240 pixels: 15.78 mm × 11.83 mm 384 × 288 pixels: 15.78 mm × 11.83 mm 464 × 348 pixels: 15.78 mm × 11.83 mm 640 × 480 pixels: 15.36 mm × 11.52 mm
Magnifying factor	2.0×
Working distance	18 mm (0.71 in)
Depth of field	±0.1 mm
Focal length	17.5 mm (0.69 in)
Spatial resolution (IFOV)	Dependent on the IR resolution of the camera: 320 × 240 pixels: 49 µm/pixel 384 × 288 pixels: 41 µm/pixel 464 × 348 pixels: 34 µm/pixel 640 × 480 pixels: 24 µm/pixel
Lens identification	Automatic
F-number	1.1
Number of lenses	4 (4 asph)
MTF @ 70% of FOV	For 30 cy/mm: 32%
Distortion	< 0.5%

Physical data
Weight	0.19 kg (0.42 lb.)
Size (L × D)	46 × 72 mm (1.8 × 2.83 in.)
Front lens diameter	25.4 mm (1.0 in)

Shipping information
Packaging, type	Cardboard box
List of contents	Lens Lens case Front lens cap Rear lens cap Lens mounting instructions
Packaging, weight	0.450 kg (0.99 lb.)
Packaging, size	151 × 125 × 125 mm (5.9 × 4.9 × 4.9 in.)
EAN-13	7332558025772
UPC-12	845188021481
