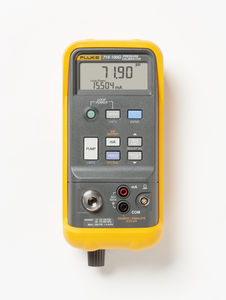

Fluke | 719

Handheld pressure calibrator, electric pump, pressure & 0-24mA current sourcing

Fluke
Reference : FLU719
Serie : 71x
Brand : Fluke
Calibrateur de pression et boucle courant portatif.
Pompe électrique intégrée.
Génère pression & courant.
Mesure pression et courant.
Pression: -12 psi à 36 psi, -850 mbar à 2,4 bar (719-30G); -12 psi à 120 psi -850 mbar à 8 bar (719-100G).
Précision: 0.025%.
Gamme de mesure de pression extensible par modules en option.
Courant: 0-24mA.
Précision: 0.015%.
TTCHT
Quantity
Quick quote for this product
Quick quote for this product
Details

Fluke 719


 Forget the Hassle of Hand Pumping

Now you can calibrate and test pressure devices quickly and easily with one hand. saving valuable time. With the innovative. built-in electric pump. the Fluke 719 Electric Pressure Calibrator provides pressure calibration at your fingertips!

Use the programmable pump limit settings to eliminate over-pressurization. and to set ‘pump to’ pressure values. The unique cleanout port design reduces pump failures. and makes the 719 easy to clean without repair. The compact. lightweight form. combined with one-handed calibration. makes this pressure calibrator the ideal tool for busy process professionals.

Pressure calibration made easy. by a name you know and trust for all your process calibration needs.

Key Features:

  • Electric pump for one handed pressure calibration
  • Best in class pressure measurement uncertainty of 0.025%
  • Measure and source mA with best in class 0.015% accuracy
  • Precision pressure adjust vernier for accurate pressure calibration
  • Variable release rate bleed valve for easy pressure adjustment
  • Ideal performance for high accuracy transmitter calibration
  • 30 PSI and 100 PSI pressure ranges
  • Programmable pressure calibrator pump limit:
    • eliminates over-pressurization
    • allows the user to program target pressures for pumping
  • Extended pressure measurement range with any of 29 700Pxx Pressure Modules
  • Source mA with simultaneous pressure measurement to test valves and I/Ps
  • Simulate mA signals to troubleshoot 4-20 mA loops
  • Test pressure switches with built in switch test function
  • Power transmitters during test using 24 V loop supply with simultaneous mA measurement
  • Pressure Calibrator includes proven cleanout ports reduce pump failures



General Specifications
Storage temperature
 -30 °C to 60 °C
Operating temperature
 -10 °C to 55 °C
Relative humidity
 95 % (-10 °C to 30 °C)
 75 % (30 °C to 40 °C)
 45 % (40 °C to 50 °C)
 35 % (50 °C to 55 °C)
Shock
 1 meter drop test
Safety
 CSA C22.2 No. 1010.1:1992
EMC
 EN50082-1:1992 and EN55022:1994 Class B
Size (HxWxL)
 60 mm x 87 mm x 210 mm
 (2.19 in x 3.41 in x 8.28 in)
Weight
 912 g (2 lb)
Battery
 Two 9 V alkaline batteries
Battery life
 12 hours with 12 mA into 500 Ω. 200 pump cycles to 100 psi. 500 pump cycles to 30 psi
Warranty
 Three-years. one year for pump
Specification:
Fluke-719 30G
Range -12 to 36 psi. -850 mbar to 2.4 bar
Resolution 0.001 psi. 0.1 mbar
Accuracy 0.025 % range for 6 months
 0.035 % of range for one (1) year
Fluke-719 100G
Range -12 to 120 psi. -850 mbar to 8 bar
Resolution 0.01 psi. 1 mbar
Accuracy 0.025 % range for 6 months
 0.035 % of range for one (1) year
mA
Range 0 to 24 mA
Resolution 0.001 mA
Accuracy .015 % Rdg + 2 counts
Notes Max load. 1000 Ω. 750 Ω ohm in HART mode
Loop supply
Range 24 V dc
Resolution N/A
Accuracy ± 10 %
Pump specifications
Maximum pressure generation
 120 PSI (8 BAR) (100 PSI model)
Pump to
 - 30 PSI in less than 15 seconds*
 - 100 psi in less than 45 seconds*
 *(with 1 meter of 1/8 inch test hose)
Pump cycles between rebuilds
 5000
Total pump life
 20.000 calibration cycle
Product Details
41-Standard Manufacturer Warranty 3 YEARS
420-Measures ranges
  • 719-3G: -12 psi à 36 psi, -850 mbar à 2,4 bar.
  • 719-100G: -12 psi à 120 psi -850 mbar à 8 bar.
  • Modules: 700 Bar max.
421-Generated ranges
  • 719-3G: -12 psi à 36 psi, -850 mbar à 2,4 bar.
  • 719-100G: -12 psi à 120 psi -850 mbar à 8 bar.
411-Measurement/generate (type) mA
24-Accuracy (%) 0.015% (mA); 0.025% (Bar, PSI)
36-Additional Characteristics Pressure & current (0-24mA) sourcing & measurement.Expansion of Measurement pressure range by optional module.Electrical pressure pump.
132-Package includes Protective Yellow Holster, TL75 Test Leads, AC72 Alligator Clip, 2x 9V alkaline batteries, 1 Hose Kit, user manual
35-Dimension (HxWxD) (mm) 210x87x60 mm
13-Net Weight 912 g
