NetAlly Link Sprinter 300
Testeur de réseau automatique avec POE & schémas câblage, resultats sur cloud & smartphone par wi-fi
Testeur automatique actif pour PoE, VLAN, DHCP, passerelle, connexion internet.
Diagnostiquer et tester l'alimentation PoE, la liaison avec le commutateur, le service DHCP, la passerelle et la connexion Internet.
Obtenez des informations sur le VLAN, le nom et le port du commutateur via CDP/LLDP/EDP pour les commutateurs managés.
Expertise techniques de dépannage réseau délivrée par code couleur des LEDS..
Tous les résultats des tests sont envoyés au service cloud Link-Live.
Recevez les résultats détaillés des tests directement sur votre email.
+
Accès aux résultats des tests sur le navigateur de votre téléphone en vous connectant au point d'accès Wi-Fi intégré au LinkSprinter.
Affichage du défaut de câble et de la distance jusqu'aux coupures ou courts-circuits.
Clignotement du voyant du port de concentrateur.
Diagnostiquer et tester l'alimentation PoE, la liaison avec le commutateur, le service DHCP, la passerelle et la connexion Internet.
Obtenez des informations sur le VLAN, le nom et le port du commutateur via CDP/LLDP/EDP pour les commutateurs managés.
Expertise techniques de dépannage réseau délivrée par code couleur des LEDS..
Tous les résultats des tests sont envoyés au service cloud Link-Live.
Recevez les résultats détaillés des tests directement sur votre email.
+
Accès aux résultats des tests sur le navigateur de votre téléphone en vous connectant au point d'accès Wi-Fi intégré au LinkSprinter.
Affichage du défaut de câble et de la distance jusqu'aux coupures ou courts-circuits.
Clignotement du voyant du port de concentrateur.
VAT incl VAT excl
Quantity
Plus de 3 semaines
Quick quote for this product
Quick quote for this product
Details

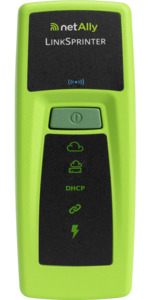

LinkSprinter®
Pocket Network Tester
A 10-second, simple network connectivity test on copper Ethernet links; Ideal for frontline/helpdesk staff.
Overview
The LinkSprinter Pocket Network Tester verifies the functionality of copper Ethernet links and identifies errors in less than 10 seconds. The tester reveals network connectivity status and port information while ensuring documentation for every link. The comprehensive AutoTester measures PoE voltage, performs a switch test, and confirms the DHCP server is running and responsive. The tester also verifies gateway/router, internal IP service, and cloud reachability. When paired with the secure Link-Live Cloud Service, the Network Tester automatically uploads results and allows annotation of results enabling job supervisors to easily manage the progress of deployment and troubleshooting tasks assigned to their team.
Key Features
- Discover the nearest switch name and port information via CDP/LLDP/EDP, and verify link speed/duplex and connectivity to TCP/IP networks.
- Validate Power-over-Ethernet (PoE) voltage from power sourcing equipment (PSE) according to 802.3af/at standards.
- View detailed test results, add comments, and run cable tests using your mobile device over a Wi-Fi hotspot built into the LinkSprinter.
- Automate reporting and enable collaboration with test results upload and management via the free Link-Live Cloud Service.
Capabilities
Mobile Device
Pair your LinkSprinter with your mobile device to discover detailed information on:
– Port name
– Nearest switch name, port #, and link speed
– PoE voltage
– DHCP server, DNS server, and gateway address
– Model
– Server addresses
Speed & Duplex
The LinkSprinter can test the actual link speed against the advertised speed of a switch. First, the Link Test LED will turn yellow, indicating a warning. Then, detail test results can be obtained via Link-Live and will show the advertised versus the actual link speed when a Gigabit Switch port is only capable of linking at 100 Mbps.
Not being able to connect can be caused by an open, short, or split pair. Using the LinkSprinter, users can further troubleshoot the problem by performing a cable test.
LinkSprinter Team Packs
The LinkSprinter was designed to be a personal tool that allows organizations to become more efficient at problem identification and trouble ticket escalation from the PC help desk on up.
Outfit your entire staff – Team packs include quantities of 5 or 10 units at a discounted price. (See Models & Accessories for more information). Note: The LinkSprinter holster is sold separately.
Blink Light on Switch Port
Verify the connection path between the jack location and the switch port using the LinkSprinter. LinkSprinter will identify the switch name and port number by analyzing the CDP/LLDP packet from the switch. The tester can blink the link light on the switch port it is connected to, allowing users to identify the full connection path.
Specifications
| General | |
| Dimensions | 4.36 in x 1.6 in x 1.28 in (11.07 cm x 4.06 cm x 3.25 cm) |
| Weight with batteries | Model 300: 0.255 lb (0.116 kg) |
| Cable length measurement | Measurable cable lengths are from 3 ft (1 m) to 656 ft (200 m) |
| Environmental | |
| Operating Temperature and Relative Humidity | 32°F to 122°F (0°C to 50°C ), Relative Humidity 5% to 90% Non-condensing |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Shock and Vibration | Random 2g, 5 Hz – 500 Hz (class 2), 1 m drop |
| Safety | CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition), IEC61010-1:2010, Pollution degree 2 |
| Altitude | Operating: 13,123 ft (4,000 m) Storage: 39,370 ft (12,000 m) |
| EMC | EN 61326-1:2006 |
| Certifications and Compliance | Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association Conforms to relevant FCC standards |
| Wi-Fi Hot Spot | |
| Specification Compliance | IEEE 802.11b/g |
| Frequency Channels | 802.11 Channels 1 thru 11 (Default is 11) |
| Operating Frequency | 2.412 ~ 2.484 GHz, ISM Band |
| Regulatory Domain | EN 301 489-1/17 |
| Browser | Internet Explorer 9.0, Firefox 3.6, Chrome 5.0, Safari 5.1 (minimum revision) |
Product Details
| 582-PoE test | Yes, PoE only |
| 142-Optical fiber test | No |
| En Stock | No |
| 36-Additional Characteristics | Access your test results through your phone’s browser by connecting to the built-in Wi-Fi access point.See cable fault and distance to open or short.Blink light on switch port. |
| 132-Package includes | 2AA batteries, user manual |
| 35-Dimension (HxWxD) (mm) | 110.7x40.6x32.5 mm |
| 13-Net Weight | 116 g |
