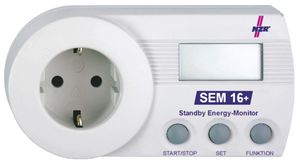

SEM16 + USB : Standby energy monitor for wall sockets

Reference : NZRSEM16+USB
Serie : SEM16, SEM16+, SEM16+USB, TTDeals
Purchase Order Reference : SEM 16+ USB
Brand : NZR
Enregistreur de consommation d'énergie pour prise secteur.

énergie (kWh), coûts, puissance min/max (W), puissance (W), courant (A), tension (V), fréquence (Hz), puissance réactive (Var), puissance apparente (VA), déphasage (°), facteur de puissance (Cos Phi), consommation équivalente en CO2 (kg).

Puissance max : 3.68 kW
Se connecte dans une prise secteur type européenne avec terre (2P+T).
Déchargement des données via câble USB et logiciel fournis.
En Stock
Quick quote for this product
Quick quote for this product

 Description :

• Instrument to determine electrical values
• 2-digit display for measured values
• Operation with 3 function buttons
• Measuring safe up to 3680 W
• Precisionclass 1 inaccordance with IEC 1036
• Measuring and memory values remain without power
• Plug fo earthed receptacles with protection contact
• Optional with plug of other countries
• Customized promotion print possible
• Data logger function readout via USB interface

Measuring values :

• Energy consumption in kWh with three decimal places
• Costs with three decimal places
• Min. power in W with one decimal place
• Max. power in W with one decimal place
• Current power in W with two decimal places
• Current in A with three decimal places
• Current voltage in V with one decimal place
• Equivalent CO2 consumptionin kg withthree decimal places
• Frequency in Hz without decimal place
• Idle power in Var with one decimal place
• Apparent power in VA with one decimal place
• Phase shift in angle without decimal places
• Power factor cos phi with twodecimal places


Same function range as SEM 16+ plus displays continuously the process of power. the current and the voltage consumption (load profile). It is possible to determine the coefficients for power. current and voltage consumption covering the measurement period.

 Data logger :

• Data logger function for the measured variables current. voltage and power
• Adjustable time integral ( min.)
• Real-timeclock integrated
• Storage volumes of14.000 values
• Data readout via USB interface
• Data cable and software included

Product Details
214-Max effective power (W) 3680 W
84-Nature of the network Single-phase
85-Power/energy type Active power (W) | Reactive power (VAR) | Apparent power (VA) | Active energy (Wh)
132-Package includes SEM16+USB, User manual, USB cable, software
35-Dimension (HxWxD) (mm) 70x138x57 mm
13-Net Weight 200 g
