Fluke | 810

Vibration tester for machine diagnosis (motors, fans, pumps, compressors...)

Fluke
Reference : FLU810
Purchase Order Reference : FLUKE-810 (3542635)
Brand : Fluke
Testeur de vibration. Outil de dépannage pour la maintenance mécanique. Identification et localisation embarquée des défauts mécaniques les plus courants (roulements, mauvais alignements, déséquilibre, desserrement des pièces). Echelle de gravité des défauts 4 niveaux pour définir un ordre de priorité pour les travaux de maintenance. Recommandations de réparations. Aide contextuelle intégrée. Mémoire extensible embarquée de 2 Go. Fonction Auto-test. Tachymètre laser et acéléromètre triaxial. Logiciel PC fourni. Garantie de 3 ans (1 an sur le tachymètre et l'accéléromètre).
TTCHT
Quantity
Expédié sous 2 semaines
Quick quote for this product
Quick quote for this product
Details

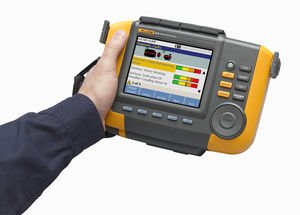

Fluke 810 Handheld Vibration Tester



Take a vibration expert along

Control unplanned downtime. prevent recurring problems. set repair priorities and manage your resources with an entirely new approach to vibration testing. The new Fluke 810 helps you locate and diagnose common mechanical problems and prioritize repair actions with no prior machine history.




New Fluke 810 Vibration Tester: When you need an answer now...

Control unplanned downtime. prevent recurring problems. set repair priorities and manage your resources with an entirely new approach to vibration testing.

The new Fluke 810 Vibration Tester is the most advanced troubleshooting tool for mechanical maintenance teams who need an answer now. The unique diagnostic technology helps you quickly identify and prioritize mechanical problems. putting the expertise of a vibration analyst in your hands.

You take pride in your facility. your team. and your work. You do what it takes to keep things up and running. but sometimes there is not enough time or resources to keep up with the workload. let alone be proactive about mechanical maintenance. The Fluke 810 Vibration Tester puts you one step ahead by using a simple step-by-step process to report on machine faults the first time measurements are taken. without prior measurement history. The combination of diagnoses. severity and repair recommendations help you make informed maintenance decisions and address critical problems first



Features and benefits
  • On-board identification and location of the most common mechanical faults (bearings. misalignment. unbalance. looseness) focus maintenance efforts on root cause. reducing unplanned downtime
  • Fault severity scale with four severity levels helps you prioritize maintenance work
  • Repair recommendations advise technicians on corrective action
  • On-board context sensitive help provides real-time tips and guidance to new users
  • 2 GB expandable on-board memory provides enough space for your machinery’s data
  • Self-test function ensures optimal performance and more time on the job
  • Laser tachometer for accurate machine running speed promotes confident diagnoses
  • Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers
  • Viewer PC Software expands data storage and tracking capacity

Use the Fluke 810 Vibration Tester to:

  • Troubleshoot problem equipment and understand the root cause of failure
  • Survey equipment before and after planned maintenance and confirm the repair
  • Commission new equipment and ensure proper installation
  • Provide quantifiable proof of equipment condition and drive investment in repair or replacement
  • Prioritize and plan repair activities and operate more efficiently
  • Anticipate equipment failures before they happen and take control of spare parts inventories
  • Train new or less-experienced technicians and build confidence and skill across the team



The new Fluke 810 helps you locate and diagnose common mechanical problems and prioritize repair actions in three simple steps:





Vibration testing has never been easier.
The 810 asks for basic machine information you already know. Its onboard Info Feature gives you field tips for setting up and taking measurements like a pro.





Fluke 810 fits easily into your maintenance routine.
Use it to quickly troubleshoot problems or monitor machine conditions.




No more guessing your machine’s condition.
With the press of a button. the Fluke 810 identifies the root cause. its location. and how severe it is. Fix it right the first time.



Diagnostic specifications
Standard faults
Unbalance. looseness. misalignment and bearing failures
Analysis for
Motors. fans. blowers. belts and chain drives. gearboxes. couplings. centrifugal pumps. piston pumps. sliding vane pumps. propeller pumps. screw pumps. rotary thread/gear/lobe pumps. piston compressors. centrifugal compressors. screw compressors. closed coupled machines. spindles
Machine rotational speed range
200 rpm to 12000 rpm
Diagnosis details
Plain-text diagnosis. fault severity (slight. moderate. serious. extreme). repair details. cited peaks. spectra



Electrical specifications
Ranging
Automatic
A/D converter
4 channel. 24 bit
Usable bandwidth
2 Hz to 20 kHz
Sampling
51.2 Hz
Digital signal processing functions
Automatically configured anti-alias filter. high-pass filter. decimation. overlapping. windowing. FFT. and averaging
Sampling rate
2.5 kHz to 50 kHz
Dynamic range
128 dB
Signal to noise ratio
100 dB
FFT resolution
800 lines
Spectral windows
Hanning
Frequency units
Hz. orders. cpm
Amplitude units
in/sec. mm/sec. VdB (US). VdB* (Europe)
Non-volatile memory
SD micro memory card. 2 GB internal + user accessible slot for additional storage



General specifications
Dimensions (HxDxW)
18.56 cm x 7.00 cm x 26.72 cm (7.30 in x 2.76 in x 10.52 in)
Weight (with battery)
1.9 kg (4.2 lb)
Display
¼ VGA. 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight
Input/Output Connections
Triaxial sensor connection 4 pin M12 connector
Single axis sensor connection BNC connector
Tachometer Connection Mini DIN 6 pin connector
PC Connection Mini ‘B’ USB (2.0) connector
Battery
Battery type Lithium-ion. 14.8 V. 2.55 Ah
Battery charging time Three hours
Battery discharge time Eight hours (under normal conditions)
AC adapter
Input voltage 100 Vac to 240 Vac
Input frequency 50/60 Hz
Operating system
WinCE 6.0 Core
Language Support
English. French. German. Italian. Japanese. Portuguese. Simplified Chinese. Spanish
Warranty
Three-years



Environmental Specifications
Operating temperature
0 °C to 50 °C (32 °F to 122 °F)
Storage temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operating humidity
10 % to 95 % RH (non-condensing)
Agency approvals
CHINA RoHS. CSA. CE. C TICK. WEEE
Electromagnetic compatibility
EN 61326-1:2006. EN 61010:1:2001 2nd ed.



Sensor specifications
Sensor type
Accelerometer
Sensitivity
100 mV/g (± 5 %. 25 °C)
Acceleration range
80 g peak
Amplitude nonlinearity
1 %
Frequency response
Z: 2 - 7.000 Hz ± 3dB
X. Y: 2 - 5.000 Hz ± 3dB
Power requirement (IEPE)
18 V dc to 30 V dc. 2 mA to 10 mA
Bias output voltage
12 V dc
Grounding
Case grounded
Sensing element design
PZT ceramic / shear
Case material
316L stainless steel
Mounting
10-32 captive socket head screw. 2-pole rare earth magnet (48 lb pull strength)
Output connector
4-Pin. M12
Mating connector
M12 - F4D
Non-volatile memory
TEDS 1451.4 compatible
Vibration limit
500 g peak
Shock limit
5000 g peak
Electromagnetic sensitivity. equivalent g
100 μg/gauss
Sealing
Hermetic
Temperature range
-50 °C to 120 °C (-58 °F to 248 °F) ± 7 %
Warranty
One-year



Tachometer specifications
Dimensions (DxW)
2.86 cm x 12.19 cm (1.125 in x 4.80 in)
Weight
96 g (3.4 oz) with cable
Power
Powered by 810 Vibration Tester
Detection
Laser Diode Class 2
Range
6.0 to 99.999 rpm
Accuracy
6.0 to 5999.9 rpm: ± 0.01 % and ± 1 digit
5999.9 to 99999 rpm: ± 0.05 % and ± 1 digit
Resolution
0.1 rpm
Effective range
1 cm to 100 cm (0.4 in to 39.27 in)
Response time
1 second (> 60 rpm)
Controls
Measure on/off transparent button
Interface
6 Pin Mini DIN
Cable length
50 cm (19.586 in)
Warranty
One-year
Tachometer accessories
Reflective tape: 1.5 cm x 52.5 cm (0.59 in × 20.67 in)



Viewer PC Software
Minimum hardware requirements
1 GB RAM
Operating system requirements
Windows XP. Vista



Includes:

  • Vibration Tester with diagnostic technology
  • Tri-axial accelerometer. magnet mount. mounting pad kit with adhesive. accelerometer quick-disconnect cable
  • Laser tachometer and storage pouch
  • Smart battery pack with cable and adapters
  • Shoulder strap and adjustable hand strap
  • Viewer PC software
  • Mini USB to USB cable
  • Getting Started Guide. illustrated quick reference guide. Users Manual CD-ROM.
  • Carrying case



Product Details
41-Standard Manufacturer Warranty 3 YEARS
