Aaronia | BicoLOG 20100

Biconical radial isotropic broadband antenna, 20MHz-1GHz, -18dBi

Aaronia
Reference : AARBicoLOG20100
Serie : Spectran, BicoLOG
Brand : Aaronia
Antenne CEM à large bande biconique radiale isotrope Appropriée pour les analyseurs de spectre de toutes les marques Modèle: biconique (isotrope radiale) Gamme de fréquences: de 20MHz à 1GHz Puissance d´entrée max.: 5W AM (100MHz) Impédance nominale: 50 Ohm Gain: -18dBi (@100MHz) Facteur d´antenne: voir fiche technique Connexion HF: SMA (f) ou N via adaptateur Connexion trépied: 1/4" Points d´étalonnage: 106 (intervalles de 5MHz et 10MHz) Dimensions (L/L/H): 350x160x140mm Poids: 350gr Garantie: 10 ans
TTCHT
Quantity
Expédié sous 2 semaines
Quick quote for this product
Quick quote for this product
Details

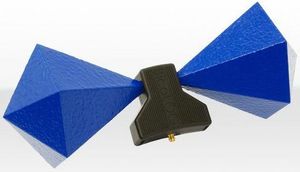

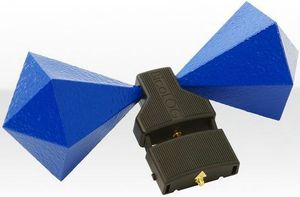

BicoLOG 20100

Biconical radial isotropic broadband antenna



Biconical antenna with expanded frequency range down to 20MHz to cover even most restrictive EMC standards.



The Aaronia BicoLOG 20100 Biconical Antenna is a new generation biconical dipole that covers the operating frequency range of 20 MHz to 1GHz. The BicoLOG 20100 offers an unprecedented combination of pattern control and balance. which makes it an excellent choice for EMC and EMI measurements. All BicoLOG antennas offer improved balunes providing superior patterns. balance and a improved biconical element design to cover a very wide frequency range.



Every BicoLOG antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence. a top-quality integrated tripod connection and a SMA connector.



Made in Germany:

All Aaronia antennas are developed. individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all biconical antennas.



Exhaustive Calibration data:

All Aaronia BicoLOG antennas include a complete high resolution (10MHz or even 5MHz steps!) calibration data set with an unmatched number of calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.



Optional Accessories:

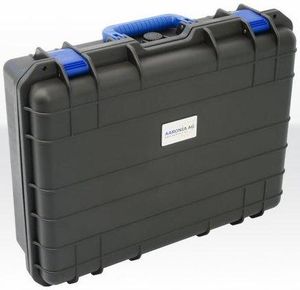

Each BicoLOG antenna can be equipped with many accessories like a rugged carrying case etc.. More details can be found at above section "Accessories".

  • Compatible with any Spectrum Analyzer brand
  • Design: Biconical (biconical dipole)
  • Frequency range: 20MHz to 1GHz
  • Max. input power: 5W AM (100MHz)
  • Nominal impedance: 50 Ohm
  • Gain: -18dBi (@100MHz)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Calibration points: 106 (5MHz and 10MHz-steps)
  • Dimensions (L/W/D): 350x160x140mm
  • Weight: 350gr
  • Warranty: 10 years



Highlights:

  • Excellent cost effective choice for low frequency measurements down to 20MHz
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact design
  • Can be used in the lab and for open-field application



Examples for possible analysis and measurements within frequency range (20MHz - 1GHz):

  • Pre-Compliance-Test
  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • etc.



Included in delivery:

  • BicoLOG 20100 radial isotropic biconical antenna
  • Typical calibration data with 106 calibration points (5MHz and 10MHz steps!) on CD
  • Carrying case not included! Please order it separately!
Product Details
41-Standard Manufacturer Warranty 10 YEARS
699-Antenna type Biconical
700-Active or passive antenna ? Passive
701-Directional ? No
240-Frequency (min) 20 MHz
235-Frequency (max) 1 GHz
613-RF Connector SMA
132-Package includes Calibration datas on CD
35-Dimension (HxWxD) (mm) 350x160x140 mm
13-Net Weight 350 g
